Isolator Iunctionis Dualis 300 ad 1250MHz TG9050XN Typi N / TG9050XS Typi SMA Imago Praecipua
  • Isolator Iunctionis Duplicis 300 ad 1250MHz TG9050XN Typi N / TG9050XS Typi SMA
  • Isolator Iunctionis Duplicis 300 ad 1250MHz TG9050XN Typi N / TG9050XS Typi SMA

Isolator Iunctionis Duplicis 300 ad 1250MHz TG9050XN Typi N / TG9050XS Typi SMA


  • Proprietates:² Bona stabilitas temperaturae/² Magnam potentiam sustinet/² RoHS congruens
  • ² Pondus:≈ 270 g
  • Index materiarum:
  • ² Testa:Nickel ferreum facile secandum
  • ² Corpus ductoris:Aeris argentati obducti
  • ² Camera oneris:Oxidatio conductiva aluminii
    • sales@rftyt.com

    Detalia Producti

    Etiquettae Productarum

    Exempla Ordinis

    Tres
    quattuor

    Typus Coniunctoris

    Impedentia 50 Ω

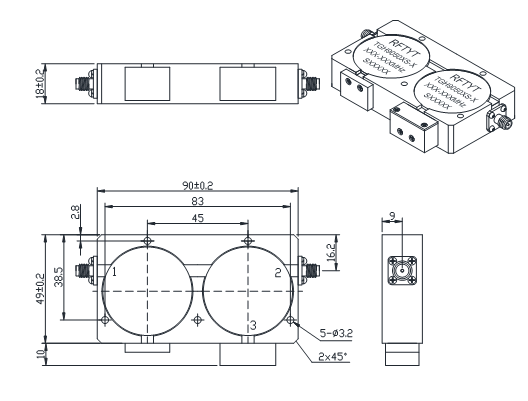

    Magnitudo(mm) 90.0*49.0*18.0
    Temperatura Operativa -30~+70Celsius/-40~+85Celsius
    Temperatura repositionis -50~+90°C
    Typus Coniunctoris NK

    SMAOptiones Coniunctorum Typi

    Optiones Coniunctorum Typi N

    Portus 1

    Portus 2

    Abbreviatio

    Portus 1

    Portus 2

    Abbreviatio

    SMA-K

    SMA-K

    S

    NK

    NK

    N

    SMA-K

    SMA-J

    SKJ

    Nova Caesarea

    NK

    NJK

    SMA-J

    SMA-K

    SJK

    NK

    Nova Caesarea

    NKJ

    SMA-J

    SMA-J

    SJ

    Nova Caesarea

    Nova Caesarea

    NJ

    Specificationes Fundamentales

    Impedentia 50 Ω
    Typus Coniunctoris SMA-F

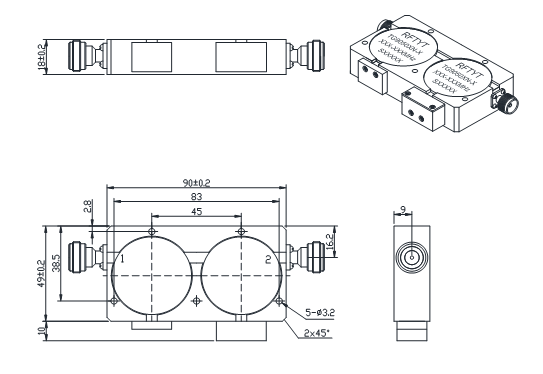

    Magnitudo(mm) 64.0*66.0*22.0
    Temperatura Operativa -20~+70Celsius
    Temperatura repositionis -quattuor0~+90°C
    Impedentia 50 Ω
    Magnitudo(mm) 90.0*49.0*18.0
    Temperatura Operativa -30~+70Celsius/-40~+85Celsius
    Temperatura repositionis -50~+90°C
    Typus Coniunctoris SMA-K

    Specificationes

    Numerus exemplaris

    (X=1: →Horologium versus)

    (X=2: ←Secundum horologium)

    Frequentiae Ambitus

    MHz

    Ille.

    dB (max)

    Separatio

    dB (min)

    SWR

    Potentia Progrediens

    CW

    Potentia Inversa

    W

    TG9050XN-X/300-350MHz

    300-350

    1.0

    40

    1.25

    centum

    XX/C

    TG9050XN-X/300-400MHz

    300-400

    1.2

    36

    1.30

    centum

    XX/C

    TG9050XN-X/300-420MHz

    300-420

    1.6

    32

    1.40

    centum

    XX/C

    TG9050XN-X/320-415MHz

    320-415

    1.6

    36

    1.40

    centum

    XX/C

    TG9050XN-X/345-415MHz

    345-415

    1.2

    40

    1.25

    centum

    XX/C

    TG9050XN-X/350-400MHz

    350-400

    0.8

    40

    1.20

    centum

    XX/C

    TG9050XN-X/350-470MHz

    350-470

    1.0

    38

    1.25

    centum

    XX/C

    TG9050XN-X/360-440MHz

    360-440

    0.8

    40

    1.25

    centum

    XX/C

    TG9050XN-X/360-470MHz

    360-470

    1.0

    40

    1.25

    centum

    XX/C

    TG9050XN-X/375-415MHz

    375-415

    0.8

    40

    1.25

    centum

    XX/C

    TG9050XN-X/380-480MHz

    380-480

    1.0

    36

    1.30

    centum

    XX/C

    TG9050XN-X/400-430MHz

    400-430

    0.5

    50

    1.15

    centum

    XX/C

    TG9050XN-X/400-500MHz

    400-500

    1.0

    40

    1.25

    centum

    XX/C

    TG9050XN-X/400-520MHz

    400-520

    1.0

    36

    1.30

    centum

    XX/C

    TG9050XN-X/400-550MHz

    400-550

    1.2

    36

    1.30

    centum

    XX/C

    TG9050XN-X/400-600MHz

    400-600

    1.8

    28

    1.60

    centum

    XX/C

    TG9050XN-X/412-512MHz

    412-512

    1.0

    40

    1.25

    centum

    XX/C

    TG9050XN-X/440-470MHz

    440-470

    0.5

    50

    1.15

    centum

    XX/C

    TG9050XN-X/450-600MHz

    450-600

    1.0

    36

    1.30

    centum

    XX/C

    TG9050XN-X/460-605MHz

    460-605

    1.0

    36

    1.30

    centum

    XX/C

    TG9050XN-X/470-520MHz

    470-520

    0.8

    40

    1.25

    centum

    XX/C

    TG9050XN-X/470-610MHz

    470-610

    1.0

    36

    1.30

    centum

    XX/C

    TG9050XN-X/470-650MHz

    470-650

    1.2

    36

    1.30

    centum

    XX/C

    TG9050XN-X/500-700MHz

    500-700

    1.2

    36

    1.30

    centum

    XX/C

    TG9050XN-X/520-570MHz

    520-570

    0.6

    46

    1.20

    centum

    XX/C

    TG9050XN-X/570-610MHz

    570-610

    0.6

    46

    1.20

    centum

    XX/C

    TG9050XN-X/600-900MHz

    DC-DCCL

    1.6

    30

    1.50

    centum

    XX/C

    TG9050XN-X/610-960MHz

    610-960

    1.6

    34

    1.50

    centum

    XX/C

    TG9050XN-X/620-862MHz

    620-862

    1.0

    40

    1.25

    centum

    XX/C

    TG9050XN-X/690-1000MHz

    690-1000

    1.2

    36

    1.30

    centum

    XX/C

    TG9050XN-X/698-960MHz

    698-960

    1.0

    40

    1.25

    centum

    XX/C

    TG9050XN-X/700-1000MHz

    700-1000

    1.2

    40

    1.25

    centum

    XX/C

    TG9050XN-X/760-1010MHz

    760-1010

    1.0

    40

    1.25

    centum

    XX/C

    TG9050XN-X/800-900MHz

    800-900

    0.6

    46

    1.20

    centum

    XX/C

    TG9050XN-X/800-1000MHz

    800-1000

    0.8

    40

    1.25

    centum

    XX/C

    TG9050XN-X/800-1200MHz

    800-1200

    1.2

    32

    1.40

    centum

    XX/C
    quinque

    Reversuspotentia 100Wtypus

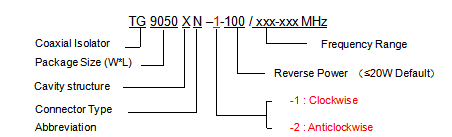

    ReversusPotentia huius figurae est 100W, index in tabula supra monstratur, et exemplar est TG.9050XN-X-100/XXX-XXXMHz

    Numerus exemplaris

    (X=1: →Horologium versus)

    (X=2: ←Secundum horologium)

    Frequentiae Ambitus

    MHz

    Ille.

    dB (max)

    Separatio

    dB (min)

    SWR

    Potentia Progrediens

    CW

    Potentia Inversa

    W

    TG9050XS-X/300-350MHz

    300-350

    1.0

    40

    1.25

    centum

    XX/C

    TG9050XS-X/300-400MHz

    300-400

    1.2

    36

    1.30

    centum

    XX/C

    TG9050XS-X/300-420MHz

    300-420

    1.6

    32

    1.40

    centum

    XX/C

    TG9050XS-X/320-415MHz

    320-415

    1.6

    36

    1.40

    centum

    XX/C

    TG9050XS-X/345-415MHz

    345-415

    1.2

    40

    1.25

    centum

    XX/C

    TG9050XS-X/350-400MHz

    350-400

    0.8

    40

    1.20

    centum

    XX/C

    TG9050XS-X/350-470MHz

    350-470

    1.0

    38

    1.25

    centum

    XX/C

    TG9050XS-X/360-440MHz

    360-440

    0.8

    40

    1.25

    centum

    XX/C

    TG9050XS-X/360-470MHz

    360-470

    1.0

    40

    1.25

    centum

    XX/C

    TG9050XS-X/375-415MHz

    375-415

    0.8

    40

    1.25

    centum

    XX/C

    TG9050XS-X/380-480MHz

    380-480

    1.0

    36

    1.30

    centum

    XX/C

    TG9050XS-X/400-430MHz

    400-430

    0.5

    50

    1.15

    centum

    XX/C

    TG9050XS-X/400-500MHz

    400-500

    1.0

    40

    1.25

    centum

    XX/C

    TG9050XS-X/400-520MHz

    400-520

    1.0

    36

    1.30

    centum

    XX/C

    TG9050XS-X/400-550MHz

    400-550

    1.2

    36

    1.30

    centum

    XX/C

    TG9050XS-X/400-600MHz

    400-600

    1.8

    28

    1.60

    centum

    XX/C

    TG9050XS-X/412-512MHz

    412-512

    1.0

    40

    1.25

    centum

    XX/C

    TG9050XS-X/440-470MHz

    440-470

    0.5

    50

    1.15

    centum

    XX/C

    TG9050XS-X/450-600MHz

    450-600

    1.0

    36

    1.30

    centum

    XX/C

    TG9050XS-X/460-605MHz

    460-605

    1.0

    36

    1.30

    centum

    XX/C

    TG9050XS-X/470-520MHz

    470-520

    0.8

    40

    1.25

    centum

    XX/C

    TG9050XS-X/470-610MHz

    470-610

    1.0

    36

    1.30

    centum

    XX/C

    TG9050XS-X/470-650MHz

    470-650

    1.2

    36

    1.30

    centum

    XX/C

    TG9050XS-X/500-700MHz

    500-700

    1.2

    36

    1.30

    centum

    XX/C

    TG9050XS-X/520-570MHz

    520-570

    0.6

    46

    1.20

    centum

    XX/C

    TG9050XS-X/570-610MHz

    570-610

    0.6

    46

    1.20

    centum

    XX/C

    TG9050XS-X/600-900MHz

    DC-DCCL

    1.6

    30

    1.50

    centum

    XX/C

    TG9050XS-X/610-960MHz

    610-960

    1.6

    34

    1.50

    centum

    XX/C

    TG9050XS-X/620-862MHz

    620-862

    1.0

    40

    1.25

    centum

    XX/C

    TG9050XS-X/690-1000MHz

    690-1000

    1.2

    36

    1.30

    centum

    XX/C

    TG9050XS-X/698-960MHz

    698-960

    1.0

    40

    1.25

    centum

    XX/C

    TG9050XS-X/700-1000MHz

    700-1000

    1.2

    40

    1.25

    centum

    XX/C

    TG9050XS-X/760-1010MHz

    760-1010

    1.0

    40

    1.25

    centum

    XX/C

    TG9050XS-X/800-900MHz

    800-900

    0.6

    46

    1.20

    centum

    XX/C

    TG9050XS-X/800-1000MHz

    800-1000

    0.8

    40

    1.25

    centum

    XX/C

    TG9050XS-X/800-1200MHz

    800-1200

    1.2

    32

    1.40

    centum

    XX/C
    sex

    Reversuspotentia 100Wtypus

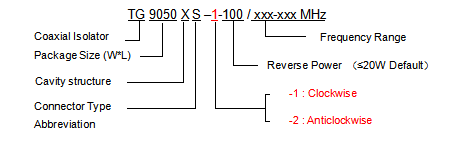

    ReversusPotentia huius figurae est 100W, index in tabula supra monstratur, et exemplar est TG.9050XS-X-100/XXX-XXXMHz

    Instructiones：



    1, Conector isolatoris SMA, N eligi potest, caput masculinum et femininum cum usore adhiberi potest;

    2, Vis reflexionis saepe 20W est etcentumW electione, forma eadem est;

    3, Nonnullae tantum frequentiae communes in tabula, secundum requisita usoris produci possunt;

    4, Si quod quaeris non inveneris, nobiscum contactum fac!
